Grails Code Coverage

In this guide you'll learn how to improve your code coverage using Clover.

Authors: Sergio del Amo

Grails Version: 4

1 Grails Training

Apache Grails Training

Apache Grails is now part of the Apache Software Foundation. The community-maintained training catalog is being migrated; in the meantime see the Learning page for current resources, recorded talks, and links to other community-supplied training material.

2 Getting Started

Atlassian Clover provides Java and Groovy developers a reliable source for code coverage analysis.

Since April 11, 2017, Clover is Open Source.

Grails 3 uses the Gradle Build System for build related tasks, such as compilation, running tests, and producing binary distributions of your project.

In this guide we are going to install a Gradle plugin to get code coverage of our Grails application.

2.1 What you will need

To complete this guide, you will need the following:

  • Some time on your hands

  • A decent text editor or IDE

  • JDK 11 or greater installed with JAVA_HOME configured appropriately

2.2 How to complete the guide

To get started do the following:

or

The Grails guides repositories contain two folders:

  • initial Initial project. Often a simple Grails app with some additional code to give you a head-start.

  • complete A completed example. It is the result of working through the steps presented by the guide and applying those changes to the initial folder.

To complete the guide, go to the initial folder

  • cd into grails-guides/grails-code-coverage/initial

and follow the instructions in the next sections.

You can go right to the completed example if you cd into grails-guides/grails-code-coverage/complete

3 Writing the Application

3.1 Gradle Clover Plugin

We are going to use the Gradle Clover Plugin to generating a code coverage report using Clover.

We are going to create a gradle file to keep the Clover configuration in one place

gradle/clover.gradle
link:{sourcedir}/gradle/clover.gradle[role=include]
1 Although, Clover is open source, you need to create a dummy license file.
2 We don’t want certain files to pollute our code coverage reports.
3 We want to include our Spock specifications as test files.
4 We want reports in both XML and HTML

We are going to reference this file from the ROOT build.gradle

build.gradle
link:{sourcedir}/build.gradle[role=include]
1 Add the plugin as a build script depedency
2 Apply the build file with Clover configuration.

3.2 Code and test

We have a domain class

grails-app/domain/demo/Person.groovy
link:{sourcedir}/grails-app/domain/demo/Person.groovy[role=include]

We have also a service which encapsulates the GORM queries against the previous domain class.

grails-app/services/demo/PersonGormService.groovy
link:{sourcedir}/grails-app/services/demo/PersonGormService.groovy[role=include]

We have a Groovy POJO.

src/main/groovy/demo/Name.groovy
link:{sourcedir}/src/main/groovy/demo/Name.groovy[role=include]

The business logic of this app is in the NameService which guesses the firstName and lastName of each of the Person instances.

grails-app/services/demo/NameService.groovy
link:{sourcedir}/grails-app/services/demo/NameService.groovy[role=include]

We have written a test for this service:

src/test/groovy/demo/NameServiceSpec.groovy
link:{sourcedir}/src/test/groovy/demo/NameServiceSpec.groovy[role=include]
1 Uncomment this line to increase your code coverage.

4 Running the Application

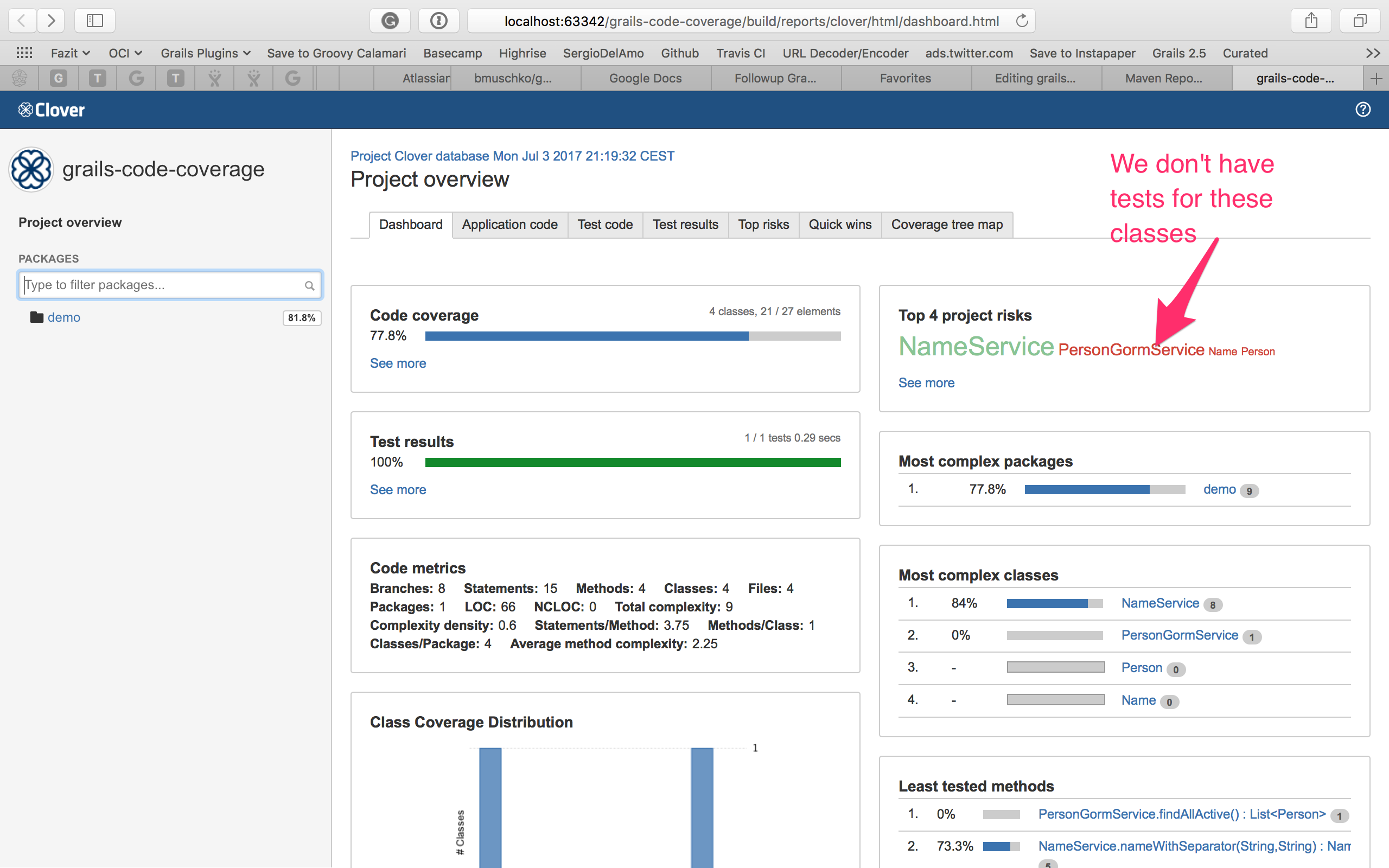

To generate the code coverage report use the ./gradlew cloverGenerateReport command which will generate the reports under: build/reports/clover/html/index.html

Explore your report and improve the project coverage:

report
